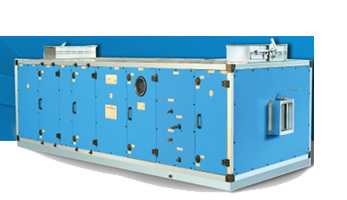

Air Handling Unit

An Air Handling Unit (often abbreviated to AHU), is a device used to condition and circulate air as part of a heating, ventilating, and air-conditioning (HVAC) system.

Capacity Range :

1000 CFM to 40000 CFM

Applications :

› Comfort Air Conditioning - For Schools, Studio, Airports,
› Laboratories, Multiplexes, Offices,
› Institutional Buildings and Hotels

Options Available :

› Weatherproof Light, Limit switch, View glass,
› Filter sections for EU-5, EU-7, in Rigid / Bag construction,
› Humidification, Pre / Re Geat Package,
› Heat recovery Wheel / Return Air Dampers,
› Mixing Box with Fresh / Return Air Dampers
› Single / Double Tier Construction,

Construction :

› The unit is manufactured in HEAVY Duty extruded Aluminum profile with & without THERMAL BREAK & internal coving section.
› The unit panels are filled with 25 OR 50mm thick pressure injected polyurethane foam, having 38/40 kg/m' density.
› Various options such as pre-coated galvanized sheets, plain galvanized sheets, aluminum & ss 304 & ss 316 sheets in various thicknesses are available for inner & outer skin of souble skin panels.
› High efficiency, AMCA certified, imported DWDI & PLUG type Blowers are used.
› Forward curved bolwers for normal applications and backward curved for high resistance application.
› Drain pan made of ss 304 with dual slope to facilitate immediate discharge of codensate.
› Base frame is made of Galvanized Steel with die cast aliminum joints having lifting holes.
› Access doors are provided with hinges & locks made of self extinguishing nylon for perfect air tightness.

Features :

The Unit is Manufactured as per the customer's Requirment.
